TM-P23X angled transducers ultrasonic flow sensor 1Mhz 45° angle water meter sensor

Ask Lasest Price
Brand Name :	TaiMI
Model Number :	TM- P23X-1MHZ 45° angle sensor
Certification :	ROHS/REACH
Price :	Negotiable
Payment Terms :	Western Union, MoneyGram, T/T ,PAYPAL
Supply Ability :	10000000/Month
Delivery Time :	2 weeks

Add to Cart

Product Details
Company Profile

TM-P23X angled transducers ultrasonic flow sensor 1Mhz 45° angle water meter sensor

23MM angled transducers ultrasonic flow sensor 1Mhz 45° angle water meter sensor

TAIMI Ultrasonic Flow Sensor

nvironmentally friendly piezo material: Lead - free

- Conform to international potable water standards

- High and low temperature resistance, high pressure resistance

- High stability and reliability

Ultrasonic flow sensor, the core element of ultrasonic flow meters, is a liquid-medium sensor.It can be used in liqiud flow meter, or as liquid level sensor.

Appearance and shape
1 Appearance: The mark is clear, without stain or damage.
2 Comply with ROHS directive and national environmental laws and regulations.

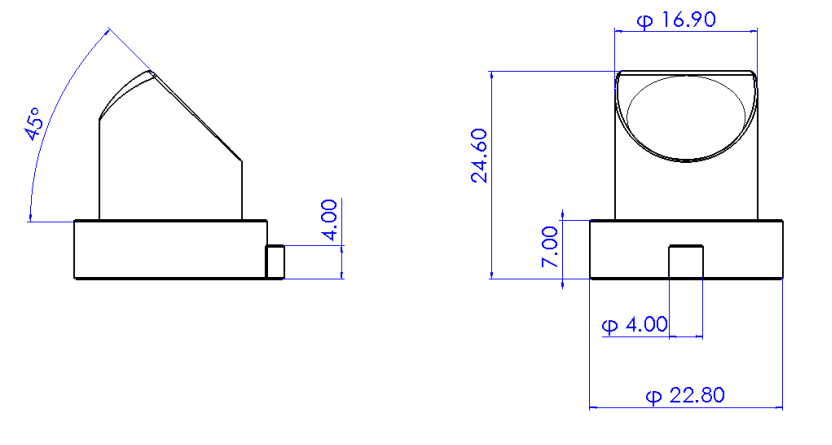

3 Dimensions (Unit: mm)

TM-P23X-1MHZ
Part NO.	TM-P23X-1MHZ	resonant frequency	900±30KHZ	static capacitance	900pf±20%
Resonant Impedance	＜150Ω	Waterproof	IP68	operating temperature	5～70℃
withstand voltage	＜2.6Mpa	Transmitting beam Angle	5 °-10 °	receive sensitivity	≥120mv (half-wave)
shell material	Polymer material	Transmitter surface SIZE	Φ23mm	Working Voltage	≥3v
sealing method	Epoxy resin potting	lead wire location	Sensor center	Cable type	double wired conductor

Test Method

1 Test Conditions

The test should be conducted at the temperature of (25 ± 3) ℃ and the relative

humidity of 40% ~ 70% R.H. In the environment.

Test Method

项目	test method
center frequency(Fr)	Measurement of thickness vibration mode by Agilent5100E impedance analyzer
Resonant Impedance(R0)
electrostatic capacity(CP)	LCR meter ,1KHz/1V

Precautions

1 .The ceramic body of the sensor chip is mainly composed of lead zirconate titanate ceramics. Please ensure that the ceramic body complies with local environmental regulations when discarded.

2. The performance parameters mentioned in the specification refer to isolated components. Please fully estimate the influence of other factors when used in the

whole circuit.

3. Sensor conductor, red is positive electrode, black is negative electrode. Needle insertion: long for the positive pole, short for the negative pole.

4. If you have any question about this specification, please contact and negotiate.

PS:We also supply ultrasonic water meter all parts,DN15,DN20,DN25MM Copper pipe and plastic pipe.

Please connect us for get more details:
Email:sales88@taimihk.com
Phone/WhatsApp:+86 13538467125

FAQ

Q:Why choose us?
A:high accuracy high efficiency high quality
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: we have it in stock, if you place a order, we will deliver it promptly
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: we can negotiate through email
