1Mhz high temperature ultrasonic water flow sensor steel flowmeter gland sensor

Ask Lasest Price
Brand Name :	TaiMI
Model Number :	TM-1MHZ Flowmeter gland sensor
Certification :	ROHS/REACH
Price :	Negotiable
Payment Terms :	Western Union, MoneyGram, T/T ,PAYPAL
Supply Ability :	10000000/Month
Delivery Time :	2 weeks

Add to Cart

Product Details
Company Profile

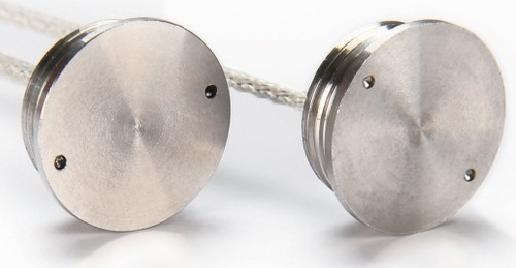

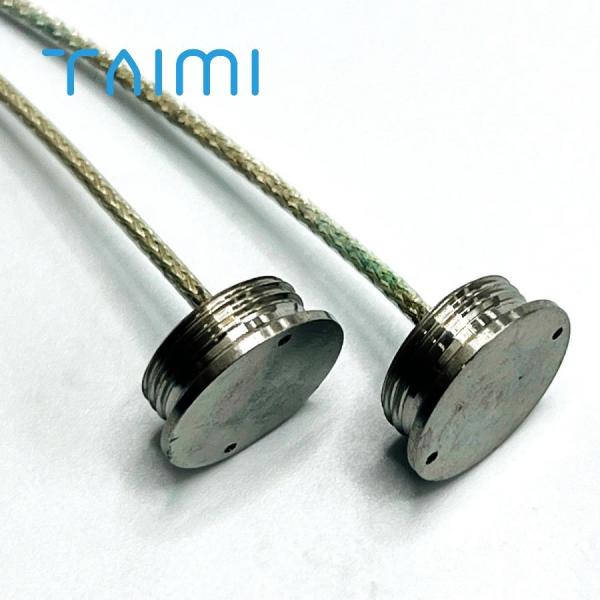

1Mhz high temperature ultrasonic water flow sensor steel flowmeter gland sensor

ith the rapid development of Internet of things technology, the demand for high-performance ultrasonic sensor of ultrasonic intelligent water meter applied in intelligent buildings is becoming more and more obvious. In order to further improve the measurement performance of ultrasonic intelligent water meter, TAIMI has launched a new generation of water meter flow sensor from the perception layer. Compared with similar competitive products on the market, this product has more stable electrical performance and stronger pressure resistance. At the same time, it has the characteristics of high sensitivity, fast reaching the peak value and easier signal processing, which helps to improve the measurement accuracy of ultrasonic water meter, and provides a more competitive hardware basis for the iterative upgrade of ultrasonic intelligent water meter.All copper material, high temperature resistance 130 degrees.

- Conform to international potable water standards

- High and low temperature resistance, high pressure resistance

- High stability and reliability

Ultrasonic flow sensor, the core element of ultrasonic flow meters, is a liquid-medium sensor.It can be used in liqiud flow meter, hot meter or as liquid level sensor.

Appearance and shape
1 .Appearance: The mark is clear, without stain or damage.
2. Comply with ROHS directive and national environmental laws and regulations.

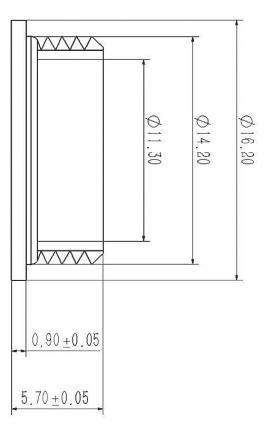

3. Dimensions (Unit: mm)

Sealing method: The sealing ring is located at the bottom of the transducer launching surface

TM-Flowmeter gland sensor-1MHZ
Part NO.	TM-YG14-1MHZ	resonant frequency	975±30KHZ	static capacitance	550pf±15%
Resonant Impedance	＜1500Ω	Waterproof	IP68	operating temperature	5～130℃
withstand voltage	＜3Mpa	Transmitting beam Angle	5°-10°	receive sensitivity	≥120mv(half-wave)
shell material	All stainless steel	Emission surface diameter	φ16.2mm	installation dimension	Φ16.5mm
sealing method	Epoxy resin potting	lead wire location	Sensor center	Cable type	coaxial line

Test Method
1. Test Conditions
The test should be conducted at the temperature of (25±3) ℃ and the relative humidity of 40% ~ 70% R.H. In the environment.
2. Test Method

项目	test method
center frequency(Fr)	Measurement of thickness vibration mode by Agilent5100E impedance analyzer
Resonant Impedance(R₀)
electrostatic capacity(C_P)	LCR meter,1KHz/1V

Precautions
.1 The ceramic body of the sensor chip is mainly composed of lead zirconate titanate ceramics. Please ensure that the ceramic body complies with local environmental regulations when discarded.
.2 The performance parameters mentioned in the specification refer to isolated components. Please fully estimate the influence of other factors when used in the whole circuit.
.3 Sensor conductor, red is positive electrode, black is negative electrode. Needle insertion: long for the positive pole, short for the negative pole.
.4 If you have any question about this specification, please contact and negotiate.

PS:We also supply ultrasonic water meter DN15,DN20,DN25MM Copper pipe and plastic pipe.

Please connect us for get more details:
Email:sales88@taimihk.com
Phone/WhatsApp:+86 13538467125

FAQ

Q:Why choose us?
A:high accuracy high efficiency high quality
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Do you provide samples ?
A: Yes, we could provide sample in 3 days
Q: What is your terms of payment ?
A: we can negotiate through email.
