    High Frequency 108khz 16mm Ultrasonic Atomizing Transducer 1.5W Power

    Ask Lasest Price
    Brand Name : TAIMI
    Model Number : TM-16mm-108khz Medical atomization
    Certification : ISO,RoHS CE
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 100000/month
    Delivery Time : 10~20days
    • Product Details
    • Company Profile

    High Frequency 108khz 16mm Ultrasonic Atomizing Transducer 1.5W Power

    High Frequency 108khz 16mm Ultrasonic Atomizing Transducer 1.5W Power


    Medical atomization Disinfectant water atomizing 16mm 108khz Ultrasonic Atomizing Transducer


    Ultrasonic Atomizing Transducer Description:


    Piezoelectric ceramics are mainly used in the manufacture of ultrasonic transducers, acoustic transducers, electro-acoustic transducer, ceramic filters, ceramic transformer, ceramic frequency, high voltage generator, infrared detectors, surface acoustic wave devices, electro-optic devices, ignition and detonation devices such as piezoelectric gyroscope..

    Ultrasonic Ceramic Atomizing Transducer


    The surface of the Piezo ceramic for atomizing is mainly made of 700-800 °C high-temperature sintering sealing glass glaze. It is bright and beautiful, has strong acid and alkali resistance, and its lifetime more than 5,000 hours. The Piezo ceramic for atomizing film produced by our factory has been certified by hundreds of test experiments, featuring stable performance, small fog particles, large atomization, acid and alkali corrosion resistance and long lifetime.


    Ultrasonic Atomizing Transducer Specification


    1. SCOPE


    This specification covers the piezoelectric ceramic transducer for wee atomization.

    2. TYPE

    TM-16-108KHZ

    3. SPECIFICATION


    3.1 DIMENSIONS


    As per the drawing No. TM-16-108KHZ


    3.2 ELECTRICAL SPECIFICATION


    3.2.1 Resonant Frequency (fr) fr = 108kHz±3kHz

    3.2.2 Resonant Resistance (Ro)


    Ro = max. 150Ω


    3.2.3 Capacitance (Cp) Cp =3600pF±15%


    1. SCOPE


    This specification covers the piezoelectric ceramic transducer for wee atomization.

    2. TYPE

    TM-16-108KHZ

    3. SPECIFICATION


    3.1 DIMENSIONS


    As per the drawing No. TM-16-108KHZ


    3.2 ELECTRICAL SPECIFICATION


    3.2.1 Resonant Frequency (fr) fr = 108kHz±3kHz

    3.2.2 Resonant Resistance (Ro)


    Ro = max. 150Ω


    Capacitance (Cp) Cp =3600pF±15%


    4. TEST PROCEDURE


    4.1 TEST ATMOSPHERE 23±3℃ 40 ~ 70%RH.

    4.2 Fr AND Ro :


    The TH-2818 Impedance Analyzer.


    4.3 Cp


    LCR meter at 1kHz,1Vrms


    5. INPUT FOR TRANSDUCER


    MAXIMUM INPUT

    Voltage: 60 Vp-p 6,INPUT VOLTAGE

    Input Voltage: DC3~5V

    7,POWER

    Max Input Power 1.5W.

    (Normal use 1.5W)

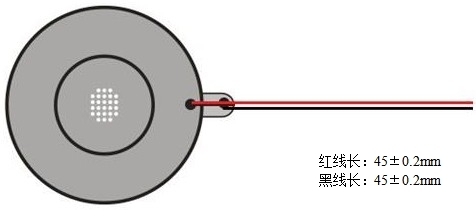

    8. Configuration sketch map
