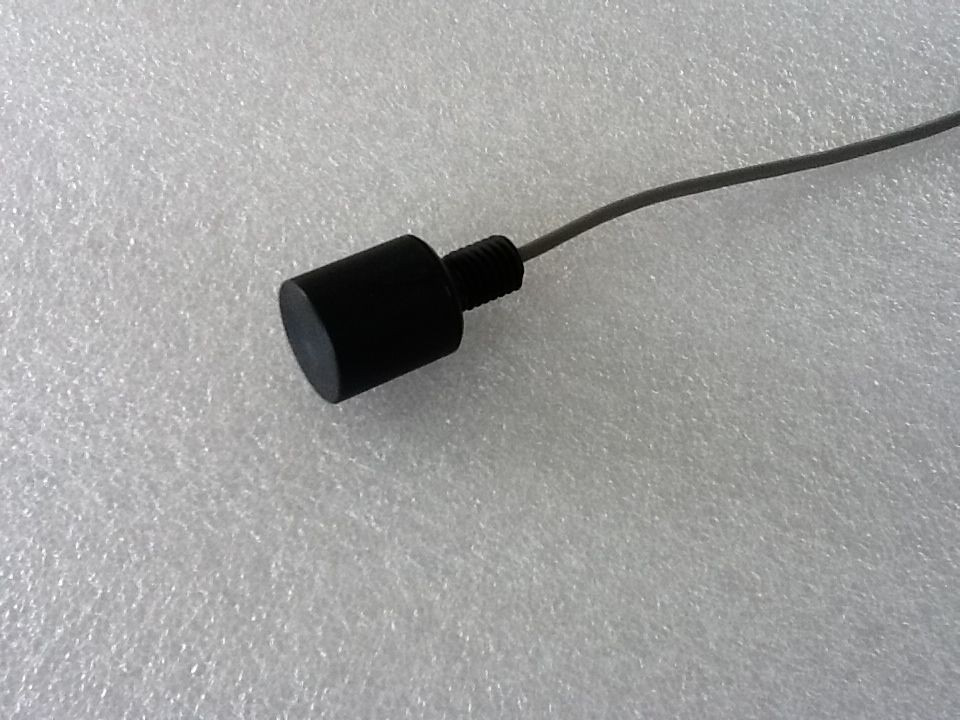

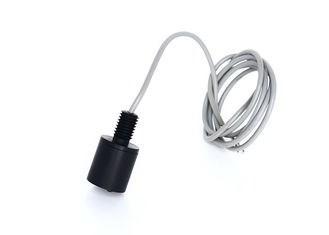

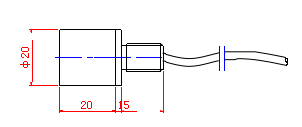

TD1000KA 10m Ultrasonic Depth Sensor 3KHZ fish finder transducer

TD1000KA Ultrasonic Depth Sensors for Depth Measurement with PZT4

Centre Working Frequency:	1MHZ±3 KHZ	Shunt Impedance (Minimum):	110±30%(Ω)
Bandwidth:	±10% (MHz)	Usage:	Underwater Sensor
Working Temperature:	-20~70℃	Case Material:	ABS
Measure Distance:	0.1-10m
High Light:	fish finder sensor , fish finder transducer

TD1000KA ultrasonic transducer for depth measurement with PZT4

1. Introduction:

Assume that the propagation speed of ultrasonic wave in water is V, assume that the ultrasonic wave emitted by the transducer (probe) reaches the bottom and is reflected from the bottom back to the probe to be received, and the time of signal return journey is t, then: Z = Vt / 2;At the same time, the distance between the water surface and the probe can be known according to the scale of the fixed bar on the probe, that is, the depth of draft. The sum of the two is the final depth.

TD1000KA Ultrasonic Depth Sensors for Depth Measurement with PZT4

2. Application:

● locating

● Approach measurement

● escaped obstruction

● fish finder

3.Main parameters

No.	item	Parameter
1	frequency(fr)	1MHZ±3%
2	Beam Angle(-3dB full open)	6°
3	Band width	10%
4	Comprehensive Sensitivity: 0 dB=3Vp-p; Cycle:8; Distance: 7cm	-26dB min
6	shunt impedance (Minimum)	110±30%(Ω)
7	Static capacitance(pf)	1300±20%
8	Working Voltage (Maximize) Pluse Wave(duty cycle 2%)	<300V
9	working Temperature	-20~70℃
10	MWP(Maximum working pressure)	1.6MPa
11	Case Material	ABS
12	IP Level	IP68

4. Frequency - total resistance curve

TD1000KA Ultrasonic Depth Sensors for Depth Measurement with PZT4

5.Frequency - phase Angle curve

6. company information
