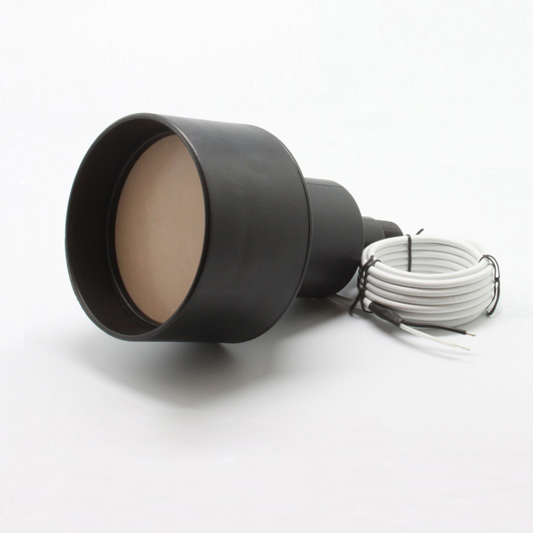

PVC Covering Sensor Long Range Ultrasonic Distance Sensor

Ask Lasest Price
Brand Name :	TAIMI
Certification :	ISO,RoHS CE
Model Number :	TM-20-200khz Ultrasonic Gas Flow Sensor
Price :	negotiable
Delivery Time :	10~20days
Payment Terms :	T/T
Supply Ability :	100000/month

Add to Cart

Product Details
Company Profile

PVC Covering Sensor Long Range Ultrasonic Distance Sensor

Frequency:	14Khz ± 2.0Khz	Case Material:	PVC
Protection Level:	IP65	Operating Temperature:	-20 ~70℃
Blind Spots:	<1.0m	Detection Distance:	1.0~45m
High Light:	ultrasonic sensor module , ultrasonic distance sensor

High Accuracy Ultrasonic PVC Covering Sensor Long Distance Measuring Transducer

1. Decription

Ultrasonic transducers or ultrasonic sensors are a type of acoustic sensor divided into three broad categories: transmitters, receivers and transceivers. Transmitters convert electrical signals into ultrasound, receivers convert ultrasound into electrical signals, and transceivers can both transmit and receive ultrasound.It could be used for measuring the distance.It could be used many applications like Depth, Distance,etc.

2. Characteristic

●Firm semblance seal (PVC outer covering)

●Convenience thread installment (G1”)

3. Application

●Position Location

●Approach measurement

●Traffic Measurement

●Avoiding Obstacles

4. Technical parameters

Model	TA0014KA
Center resonant frequency (kHz)	14KHz±2.0Khz
Bandwidth	1.5Khz
Detection distance	1.0~45m
Blind spots	<1.0m
Launch angle beam (-6dB full angle)	15±2°
Sensitive	-55dB min
Electrostatic capacitance	8000PF±20%
Minimum parallel impedance	280Ω±30%
Maximum working voltage (Pulse - 2% duty cycle)	4000Vp-p
Operating temperature	-20 ~70℃
Storage temperature	-40 ~85℃
Protection level	IP65

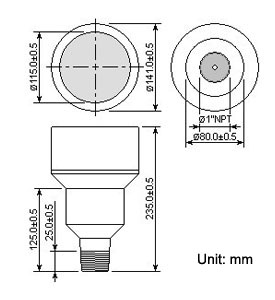

Size (diameter * height, mm)	φ140x235
Installation	Fixed with screw
Case Material	PVC
Cable length	3 M (can be customized)
Weight	2.5kg
