200 KHz Ultrasonic Air Transducers Short Range Ultrasonic Sensor 12cm-2 Meters

Ask Lasest Price
Brand Name :	TAIMI
Certification :	ISO,RoHS CE
Model Number :	TM-20-200khz Ultrasonic Gas Flow Sensor
Price :	negotiable
Delivery Time :	10~20days
Payment Terms :	T/T
Supply Ability :	100000/month

Add to Cart

Product Details
Company Profile

200 KHz Ultrasonic Air Transducers Short Range Ultrasonic Sensor 12cm-2 Meters

Center Frequency:	200KHZ	Bandwidth:	±4%
Measure Range:	0.10-2m	Beam Angle(-3dB):	14±2°
Static Capacitance:	500PF±100PF	Dimension (diameter * Height Mm):	φ16×20
Minimal Parallel Impedance:	250Ω±30%	Defend Class:	IP65
Weight:	10g	Operating Temperature:	-20~80℃
High Light:	ultrasonic sensor module , ultrasonic distance sensor

200 KHz Ultrasonic transducer short distance measurement 12cm-2meters.

1. Description

Ultrasonic transducers are transducers that convert ultrasound waves to electrical signals or vice versa. Those that both transmit and receive may also be called ultrasound transceivers; many ultrasound sensors besides being sensors are indeed transceivers because they can both sense and transmit.

2. 200KHz ultrasonic transducer

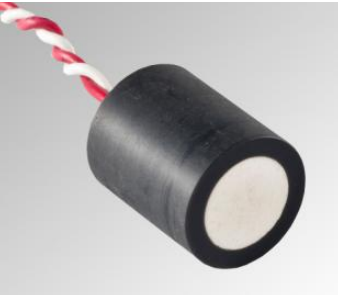

200 KHz Ultrasonic Distance Transducer Short Distance Measurement 12cm-2 Meters

3. Feature:

●Solid package(ABS or Aluminum alloy shell)
●Installation expediently(M20*1.5 Screw)

4. Application:

●Locating

●Flow measurement

●Approach measurement
●Traffic measurement

●Escaped obstruction

●Robot

5. Technology parameter

Model	TA0200KC
Center frequency (KHz)	200KHZ
Bandwidth	±4%
Measure range	0.10-2m
Blind zone	<0.10m
Beam angle(-3dB)	14±2°
Static Capacitance	500PF±100PF
Minimal parallel impedance	250Ω±30%
Maxim operating voltage (Pulse Duty cycle ratio 2%)	<500V
Operating temperature	-20~80℃
Defend class	IP65
Dimension (diameter * height mm)	φ16*20
installation	Circle fixed
Shell material	ABS or Aluminum alloy shell
Cable length	20cm(according to user’s requirement )
Weight	10g
