20mA Depth Finder RS485 200W Underwater Waterproof Transducer

Ask Lasest Price
Brand Name :	TAIMI
Certification :	ISO,RoHS CE
Model Number :	TM-40200KA
Price :	negotiable
Delivery Time :	10~20days
Payment Terms :	T/T
Supply Ability :	100000/month

Add to Cart

Product Details
Company Profile

20mA Depth Finder RS485 200W Underwater Waterproof Transducer

IP68 Ultrasonic Depth Sensors for Depth Measurement Underwater Waterproof Transducer

Static Capacitance(pf):	2700±15%	Material:	PZT4 PZT8
Output Signal::	4-20mA Or RS485	Warranty::	1 Year
Power:	50~200W	Case Material:	ABS
IP Level:	IP68
High Light:	fish finder sensor , fish finder transducer

IP68 Ultrasonic Sensor Underwater for Depth Measurement underwater waterproof transducer

1.Introduction:

It is a dual frequency depth measurement ultrasonic transducer and application in river, lake depth measurement,fish-finder,etc.

IP68 Ultrasonic Depth Sensors for Depth Measurement Underwater Waterproof Transducer

2.Application:

● locating

● Approach measurement

● escaped obstruction

● fish finder

3.Main parameters

No.	Item	Parameter
1.	Working frequency(fr)	40KHZ±1 KHZ 200KHZ±3 KHZ
2	Material	PZT-4
3	Beam width(-3dB)	40KHZ: 15° 200KHZ:5°
4	Parallel impedance (in water)(Ω)	600±30%
5	Static capacitance(pf)	2700±15%

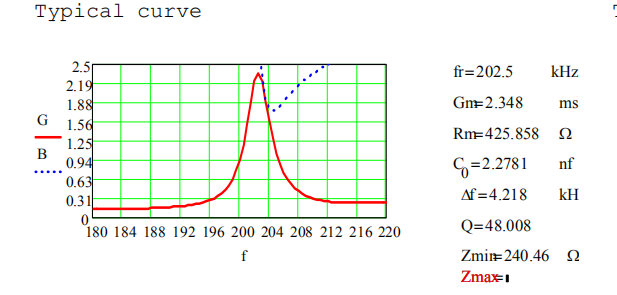

4.Total resistance - phase curve

IP68 Ultrasonic Depth Sensors for Depth Measurement Underwater Waterproof Transducer

Wiring way:
Red - - transducer positive electrode;
Black - - transducer cathode;
Blue and green - - temperature sensor；
the yellow, white and the shield - - outer covering shield.
