ABS 75 KHz Ultrasonic Air Transducers 6 Meters Distance Measurement

Ask Lasest Price
Brand Name :	TAIMI
Certification :	ISO,RoHS CE
Model Number :	TM-20-200khz Ultrasonic Gas Flow Sensor
Price :	negotiable
Delivery Time :	10~20days
Payment Terms :	T/T
Supply Ability :	100000/month

Add to Cart

Product Details
Company Profile

ABS 75 KHz Ultrasonic Air Transducers 6 Meters Distance Measurement

Frequency:	75KHz±2.0Khz	Case Material:	ABS
Protection Level:	IP65	Operating Temperature:	-20 ~70℃
Blind Spots:	<0.8m	Detection Distance:	0.25~6m
Sensitive:	-60dB Min
High Light:	distance measuring sensor , ultrasonic distance sensor

ABS Material Shell 75 KHz Ultrasonic Transducer for 6 meters Distance Measurement

1. Decription

The 75khz ultrasonic transducer , measuring range is from 0.25 to 6 meters, which could be widely used for the distance detection ultrasonic sensor. In industrial applications, ultrasonic sensors are characterized by their reliability and outstanding versatility. Ultrasonic sensors can be used to solve even the most complex tasks involving object detection or level measurement with millimetre precision, because their measuring method works reliably under almost all conditions.

ABS Material Shell 75 KHz Ultrasonic Transducer for 6 meters Distance Measurement

Characteristic:

●Solid package (ABS or Aluminum alloy shell)

●Installation expediently (M20*1.5 Screw)

Application:

●Position Location

●Approach measurement

●Traffic Measurement

●Avoiding Obstacles

4. Technical parameters

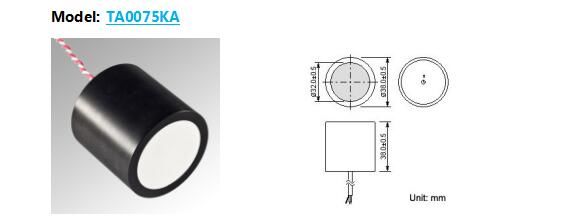

Model	TA0075KA
Center resonant frequency (kHz)	75KHz±2.0Khz
Bandwidth	6.0Khz
Detection distance	0.25~6m
Blind spots	<0.25m
Launch angle beam (-6dB full angle)	14±2°
Sensitive	-60dB min
Electrostatic capacitance	1500PF±20%
Minimum parallel impedance	250Ω±30%
Maximum working voltage (Pulse - 2% duty cycle)	1000Vp-p
Operating temperature	-20 ~80℃
Storage temperature	-40 ~85℃
Protection level	IP65
Size (diameter * height, mm)	Φ38x38
Installation	External cycle fixed
Case Material	ABS
Cable length	0.2m (can be customized)
Weight	100g
