14mm Wired 58kHz 40KHZ Ultrasonic Sensor Transmitter And Receiver

Ask Lasest Price
Brand Name :	TAIMI
Model Number :	TM- A1440h10TR aterproof Ultrasonic SENSOR
Certification :	ISO,RoHS CE
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	100000/month
Delivery Time :	10~20days

Add to Cart

Product Details
Company Profile

14mm Wired 58kHz 40KHZ Ultrasonic Sensor Transmitter And Receiver

4mm wired 58kHz 40KHZ ultrasonic sensor transmitter and receiver Waterproof Ultrasonic transducer senosr

Waterproof Ultrasonic TransducerProduct Description

Product Detail

1. Product name:Ultrasonic Transducer

2. Application:Position Detection

3. Type:Waterproof

4. Material:Alloy Steel

5. Color:White

6. Warranty:3 Years

7. Product Keywords:40khz waterproof ultrasonic transducer,40khz transducer for distance detect,40khz 14mm ultrasound transducer

Water proof type ultrasonic sensors were widely used for parking sensors, proximity sensors and level sensors, etc. With perfect seal these sensors can be used in a relatively poor environment such as dust and humidity.

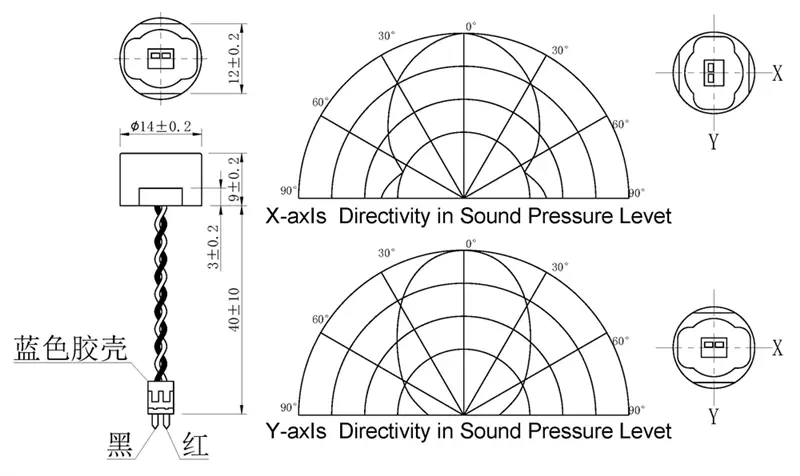

Waterproof Ultrasonic Transducer Details:

Item	ultranosic sneosr
Using method	Transmitter and Receiver sensor
Center frequency	48±1.5KHz(PV80A)
Transmitting Sound Pressurs Level	≥90dB (10cm/10Vrms Sine Wave)
Distance	≥ 0.7m (test plate φ 50 × 1000mm PVC pipe)
Aftershock	≤2.0ms(Main engine test board, including transmitting fundamental wave.)
Horizontal angle	120±15°
Vertical angle	65±15°
Receiving sensitivity	≥-70dB/v/μ bar(0dB=V/Pa)
Echo	≥ 400mV (test plate φ 50 × 1000mm PVC pipe, distance 0.7m)
Impedance	≤3500Ω
Capacitance	1800±20% pF(at 1.0KHz)
Allowable Input Voltage	150Vp-p(48KHz)
Operating Temperature	-40~+80℃
Storage Temperature	-40~+85℃
Metals of case	Aluminum
Mean time between failures	5000h
Terminal	Connector
Weight(g)	2.7±0.5

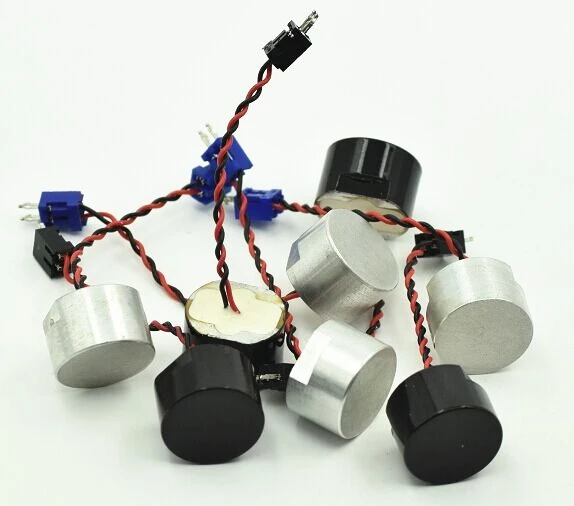

14mm Wired 58kHz 40KHZ Ultrasonic Sensor Transmitter And Receiver

All Series:

12*9mm	Open Type	40±1.0KHz	80°±15° (-6dB)	Transmitter
16 * 10mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Receiver
16 * 10mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Transmitter
16*40mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Transmitter
16 * 10mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Transmitter&Receiver
452015mm	Open Type	40±1.0KHz	≤30°	Transmitter&Receiver
16 * 12mm	Open Type	40±1.0KHz	70°±15° (-6dB)	Transmitter&Receiver
10*7mm	Open Type	40±1.0KHz	70°±15° (-6dB)	Transmitter
16*10mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Transmitter&Receiver
16*12mm	Open Type	23±1.0KHz	80°±15° (-6dB)	Transmitter
10 * 8MM	Enclosed	40±1.0KHz	70°±15° (-6dB)	Dual use
12 * 8mm	Enclosed	40±1.0KHz	X:110°±15 Y:70° ±10	Dual use
14 * 9MM	Enclosed	40±1.5KHz	X:110°±15° Y:60°±15°	Dual use
12 * 9mm	Open Type	40.0±1.0KHz	70°±15° (-6dB)	Receiver
16 * 10MM	Enclosed	40±1.0KHz	70°±15°	Dual use
16 * 12MM	Enclosed	40±1.0KHz	X:80°±15° Y:80° ±15°	Dual use
20 * 16MM	Enclosed	165±5KHz	14°±2°(-6dB)	Dual use
21 * 11MM	Enclosed	970±30 KHz	8°±2°	Dual use

1.Automated machine dispensing,perfect product appearance .

2.Sound test, using decibels,frequency waveforms, impedance recognition, excellent product sound and good consistency.

Our Services

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional and fluent English.

3. Customized design is available.

Technical support

1.We have professional technical support team to support our customers

2.If you have any question for the technology of our products,please Email to us and we will reply to you immediately

FAQ

1. Q: When can we get the reply?

Any inquiries will be replied within 24 hours.

2. Q: Can i have samples?

A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.

3. Q: What about minimum order quantity?

A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.

4. Q: What about delivery time?

A: We will send sample to you within 3 days.

Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.

5. Q: What about terms of payment?

A: Payment terms: T/T, west Union, Paypal and L/C etc.

6. Q: How you will send the goods to us?

A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.

7. Q: Are you trading company or manufacturer ?

A: We are in China buzzer manufactory

8. Q: Do you support OEM and ODM services?

A: Yes, surely support. we can customize products according to the drawing.

9. Q: Can you provide driven circuit?

A: Yes, of course sure.

10. Q: Can you solve technical problems for us?

A: Yes, Our Technical team will try our best to support you.
