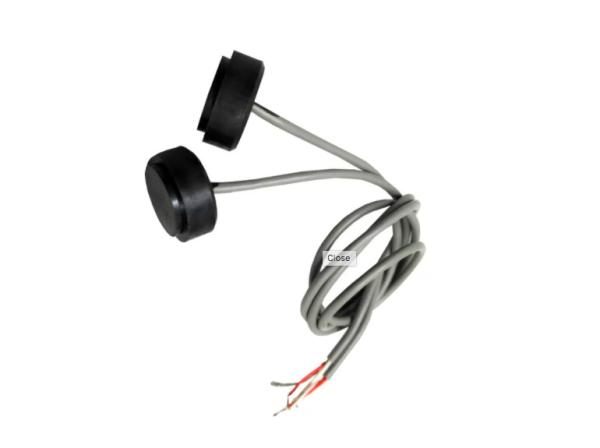

Name: Plastic Housing Accurate Measurements 1MHz Ultrasonic Flow Transducer
Brand: TAIMI
Price: 1 USD

Ask Lasest Price
Brand Name :	TAIMI
Model Number :	TM-M20-1mhz 1mhz Ultrasonic Flow Sensor
Certification :	ISO9001、ISO14001、IATF16949
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	1000000/month
Delivery Time :	10~15days

Add to Cart

Detailed Product Description

Theory:

Ultrasonic Sensor

Usage:

Flow Tranducer

Frequency:

1Mhz

Port:

Shenzhen

High Light:

ultrasonic flow transducer

1MHz Ultrasonic Flow Transducer Plastic Housing Accurate Measurements

Specifications:

Model	HJ-2112/1M
Frequency(kHz)	1MHz±5%
Bandwidth	200kHz
General sensitivity 0 dB=3 Vp-p;CW; Distance:7cm	-30dB min
Beam width(-3dB full angle)	6±2°
Static capacitance	1200PF±20%
Min. parallel resistance	250Ω±30%
Max. driving Voltage(2% duty cycle tone burst)	＜300V
Operating temperature	-20～70℃
Protection/waterproof level	IP68
Max. driving pressure	1.6MPa
Housing material	PPS
Wire length	65cm

1MHz Ultrasonic Flow Transducer Plastic Housing Accurate Measurements 0

All specification taken typical at 25℃
