High Sensitivity 1mhz Ultrasonic Flow Transducer For water Meter Ultrasonic pipe section sensor

Ask Lasest Price
Brand Name :	TAIMI
Model Number :	TM-M20-1mhz 1mhz Ultrasonic Flow Sensor
Certification :	ISO9001、ISO14001、IATF16949
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	1000000/month
Delivery Time :	10~15days

Add to Cart

Product Details
Company Profile

High Sensitivity 1mhz Ultrasonic Flow Transducer For water Meter Ultrasonic pipe section sensor

The Ultrasonic Flow Sensor with Pipe measures the flow rate of the water flowing through it by transmitting and receiving ultrasonic pulses. It is comprised of a pair of ultrasonic flow sensors and a polymer pipe.

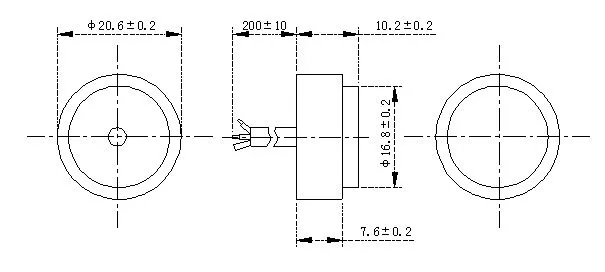

OUTLINE DRAWINGS AND DIMENSIONS

1mh

Specification
Centre working frequency (kHz)	1mhz±4%
Bandwidth	±5°
overall sensitivity 0 dB=3 Vp-p; cycle:8; distance:8cm (transmitter and receiver)	-62dB min
Beam angle(-3dBfull angle)	12±2°
electrostatic capacity	2000PF±20%
Minimal parallel impedance	250Ω±30%
Maxim operating voltage (Pulse Duty cycle ratio 2%)	<100V
Operating temperature	-20~70℃
Protection class	IP65

Test procedure
Item	Test procedure
Nominal Frequency(Fn)	Measuring thickness vibration mode,Agilent 4294A Impedance analyzer
Resonance Impedance(R0)
Static Capacitance(CP)	Agilent 4284A Precision LCR Meter (at 1kHz/1V)

Ceramic ultrasonic transducer, the core element of ultrasonic flow meters, is a liquid-medium sensor. It can be used in liquid flow meter, or as liquid level sensor. Products are made from the piezoelectric ceramic developed by ourselves, has the advantages of better temperature stability and superior piezoelectric effect.

Application:

FAQ

Q1:Are you a manufacturer or a trading company?

A1: We have been specialized in the piezo ceramic related products manufacturing for 31 years.

Q2:Where is your factory located?

A2: Factory address: No.1188,Jiahang Road,Jiaxing City , Zhejiang Province,China.

Q3: What's your company MOQ?

A3: Small quantity also available.

Q4: What's the payment way?

A4: T/T, western union, credit card etc.

Q5: Can you send a sample for us to test ?

A5: Yes, most samples are available for free. For samples whose cost is very high, the sample fee will return back in future order.

Q6:What is your shipping way?

A6: We support DHL, UPS, FedEx, EMS.

Our services

1. Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;

2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.

Our guarantee

1.12 months warranty for most of our products;
2. We will arrange delivery of the goods on time;
3. Within the warranty period, we will bear all the quality problem of our products;
4. Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5. Without any problem, we will gain the feedbacks of our products to help improve better products.
