High Frequency Diameter 30mm 38mm 41mm 51mm Optional Ultrasonic Mouse Repellent 25khz Piezo Tweeter Alarm Buzzer
1. Ultrasonic speaker Description
30MM Specification:
| 1 | Model No. | TM3012 |
| 2 | Rated Voltage (Vp-p) | 5.5V |
| 3 | Operating Voltage (Vp-p) | 30V |
| 4 | *Resonant Frequency (Hz) | 25±5KHz |
| 5 | Rated Frequency Range | 2.5-50KHz |
| | Capacitance at 100Hz | 40,000pF±30% |
| 6 | *Sound Output at 50cm (dB) | ≥90dB/50cm/5.5V |
| | paper cone | paper cone |
| 7 | Operating Temperature (℃) | -20~+70 |
| 8 | Storage Temperature (℃) | -30~+80 |
38MM Specification:
| Model | |
| Rated Voltage (Vrms) | |
| Operating Voltage (Vrms) | |
| Resonant Frequency (Hz) | |
| Capacitance 120Hz (PF) | |
| Sound Output at 30cm (dB) | |
| Operating Temperature (℃) | |
| Storage Temperature (℃) | |
| Weight (g) | |
| RoHs | |

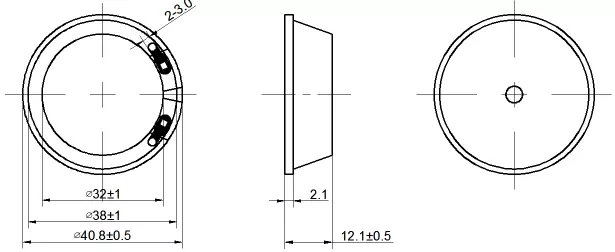

41MM Specification:
| 1 | Model No. | TM4113 |
| 2 | Rated Voltage (VP-P) | 5.5 |
| 3 | Operating Voltage (VP-P) | 30 Max |
| 4 | *Resonant Frequency (Hz) | 25±5KHZ |
| 6 | *Sound Output at 50cm (dB) | ≥100 |
| 7 | Capacitance at 120Hz (pF) | 80000±30% |
| 8 | Operating Temperature (℃) | -20~+70 |
| 9 | Storage Temperature (℃) | -30~+80 |
| 10 | Paper cone | Mylar Cone |
| 11 | Weight (g) | 5.5 |
| *Value applying at5.5VP-P, 25KHz sine wave 50cm |
51MM Specification:
| Model | |
| Rated Voltage (Vrms) | |
| Operating Voltage (Vrms) | |
| Resonant Frequency (Hz) | |
| Capacitance 120Hz (PF) | |
| Sound Output at 30cm (dB) | |
| Operating Temperature (℃) | |
| Storage Temperature (℃) | |
| Weight (g) | |
| RoHs | |
Buzzers Application:
(piezo buzzer, magnetic buzzer, piezo speaker, piezo sounder, magnetic sounder, micro speaker,Ultrasonic transducer/Sensor, etc.)
| 1. Alarms | 2. Satellite receivers | 3. Microwave ovens | 4. Computers |
| 5. Calculators | 6. Digital cameras | 7. Electronic dictionaries | 8. Ultrasonic planimeters |
| 9. Medical devices | 10. Micro-displacement positioner | 11. High voltage generator | 12. Facsimile machines |
| 13. Telephones | 14. Toys | 15. Clocks | 16. Smart lock system |
| 17. Car parking system | 18. Others |
4.5khz ultrasonic speaker workshop:
25khz ultrasonic speaker Certifications
Transport
FAQ
| 1. Q: When can we get the reply? |
| Any inquiries will be replied within 24 hours. |
| 2. Q: Can i have samples? |
| A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee. |
| 3. Q: What about minimum order quantity? |
| A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first. |
| 4. Q: What about delivery time? |
| A: We will send sample to you within 3 days. |
| Production for big quantity needs 20 to 25 days. And it also depends on product and quantity. |
| 5. Q: What about terms of payment? |
| A: Payment terms: T/T, west Union, Paypal and L/C etc. |
| 6. Q: How you will send the goods to us? |
| A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc. |
| 7. Q: Are you trading company or manufacturer ? |
| A: We are in China buzzer manufactory |
| 8. Q: Do you support OEM and ODM services? |
| A: Yes, surely support. we can customize products according to the drawing. |
| 9. Q: Can you provide driven circuit? |
| A: Yes, of course sure. |
| 10. Q: Can you solve technical problems for us? |
| A: Yes, Our Technical team will try our best to support you. |
Contact Us
Other Catalogues
25khz inductance piezo ceramic element speaker for pest repellent
| 1 | Model No. | LDG30 |
| 2 | Rated Voltage (Vp-p) | 5.5V |
| 3 | Operating Voltage (Vp-p) | 30V |
| 4 | *Resonant Frequency (Hz) | 25±5KHz |
| 5 | Rated Frequency Range | 2.5-50KHz |
| | Capacitance at 100Hz | 40,000pF±30% |
| 6 | *Sound Output at 50cm (dB) | ≥90dB/50cm/5.5V |
| | paper cone | paper cone |
| 7 | Operating Temperature (℃) | -20~+70 |
| 8 | Storage Temperature (℃) | -30~+80 |
