Active Wired Connector Electronic Alarm Sound Buzzer Self Excited
Type
Active Wired Connector 3-24V Electronic Alarm Sound Buzzer Piezo
Electronic Tone Buzzer Alarm
Electronic Alarm Buzzer
Perfect for motorcycle stand alarm, alarm clock or any project
which you need an alarm buzzer for getting immediate attention.
1.Electronic Alarm Buzzer Description
| Rated Voltage | (VDC) | 12 |
| Operating Voltage | (VDC) | 3~20 |
| *Rated Current | (mA) | ≤12 |
| *Sound Output at 30cm | (dB) | ≥100 |
| *Resonance Frequency | (KHz) | 2.8±0.5 |
| Tone | | Continuous |
| Operating Temperature | (℃) | -20~+70 |
| Storage Temperature | (℃) | -30~+80 |
| Weight | (g) | 12 |
| Housing Material | | ABS |
| RoHS | | Yes |
| Quantity | (pcs) | 1000 |
| Gross Weight | (kg) | 15 |
| Carton Size | (cm) | 58.5*33.5*34 |
2. Electronic Alarm Buzzer Dimensions
3. Electronic Alarm Buzzer Frequency
4. Electronic Alarm Buzzer Family
Classification of buzzer :
1. According to the principle of its driving mode, it can be
divided into: active buzzer (including driving circuit, also called
self-excited buzzer) and passive buzzer (external drive, also
called other excited buzzer) Sounder);
2. According to the different construction methods, it can be
divided into: electromagnetic buzzer and piezoelectric buzzer;
3. According to the different packages, it can be divided into: DIP
BUZZER (Pin Buzzer) and SMD BUZZER (SMD Buzzer);
4. According to the difference of current, it can be divided into:
DC buzzer and AC buzzer. Among them, DC is the most common
piezoelectric buzzer, which uses piezoelectric material, that is,
when the external force causes the piezoelectric material to occur
Piezoelectric materials generate electrical charges during
deformation. Similarly, piezoelectric materials deform when
energized.
The electromagnetic buzzer mainly uses the characteristics of the
conductive conductor to generate a magnetic field, and uses a fixed
permanent magnet and the conductive conductor to generate magnetic
force to push the tympanic membrane fixed on the coil.
Due to the different sounding principles of the two buzzers, the
piezoelectric structure is simple and durable but has a single tone
and color difference. It is suitable for devices such as alarms.
The electromagnetic type is mostly used for voice, music and other
equipment because of its good timbre.
5. Electronic Alarm Buzzer Workshop
6. Electronic Alarm Buzzer Certifications
7. Transport for Piezo Siren
8. Piezo Siren FAQ
| 1. Q: When can we get the reply? |
| Any inquiries will be replied within 24 hours. |
| 2. Q: Can i have samples? |
| A: Yes. Sample is surely ok. We can even send you free sample and
you should only pay for the freight fee. |
| 3. Q: What about minimum order quantity? |
| A: We have no limit for MOQ, so you can even buy only 1 piece.
Welcome to buy sample to test first. |
| 4. Q: What about delivery time? |
| A: We will send sample to you within 3 days. |
| Production for big quantity needs 20 to 25 days. And it also
depends on product and quantity. |
| 5. Q: What about terms of payment? |
| A: Payment terms: T/T, west Union, Paypal and L/C etc. |
| 6. Q: How you will send the goods to us? |
| A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and
Sea shipping etc. |
| 7. Q: Are you trading company or manufacturer ? |
| A: We are in China buzzer manufactory |
| 8. Q: Do you support OEM and ODM services? |
| A: Yes, surely support. we can customize products according to the
drawing. |
| 9. Q: Can you provide driven circuit? |
| A: Yes, of course sure. |
| 10. Q: Can you solve technical problems for us? |
| A: Yes, Our Technical team will try our best to support you. |
9. Contact Us

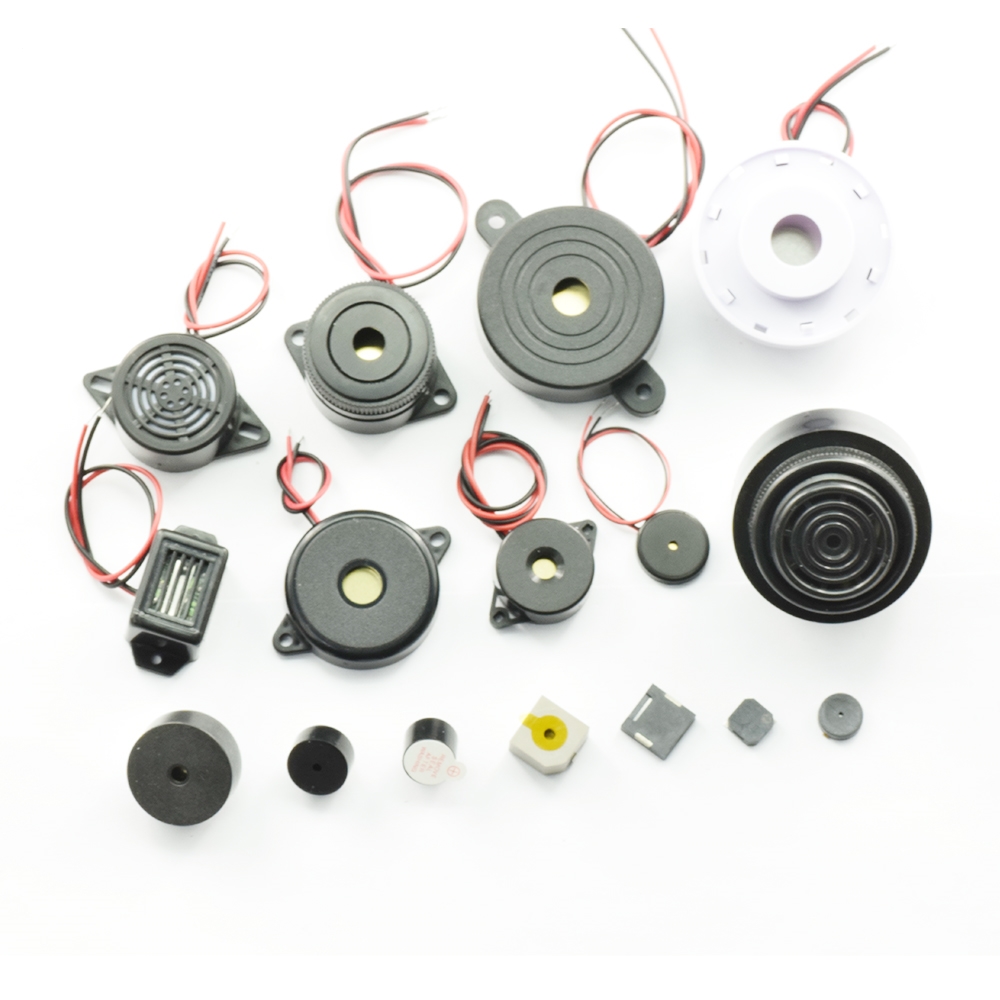

10. Other piezo Buzzer Catalogues

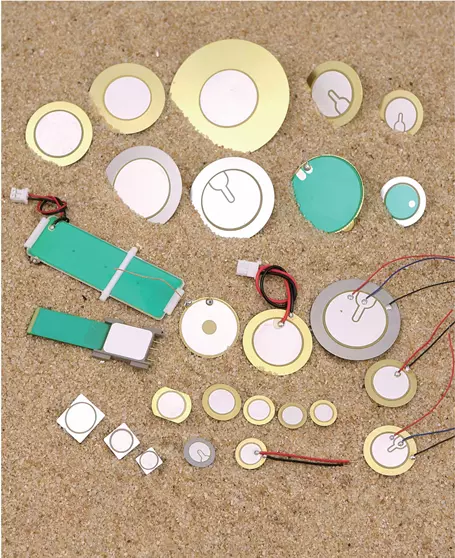

Piezo Buzzer Piezo Element buzzer
