10mm Piezoelectric Ultrasonic Transmitter 40khz High Sensitivity T / R

Ask Lasest Price
Brand Name :	TAIMI
Model Number :	TM-US10144ATR Waterproof Ultrasonic Transducer
Certification :	ISO,RoHS CE
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	100000/month
Delivery Time :	10~20days

Add to Cart

Product Details
Company Profile

10mm Piezoelectric Ultrasonic Transmitter 40khz High Sensitivity T / R

High Sensitivity T / R 12mm sensor 40KHz Piezoelectric Ultrasonic Transducer

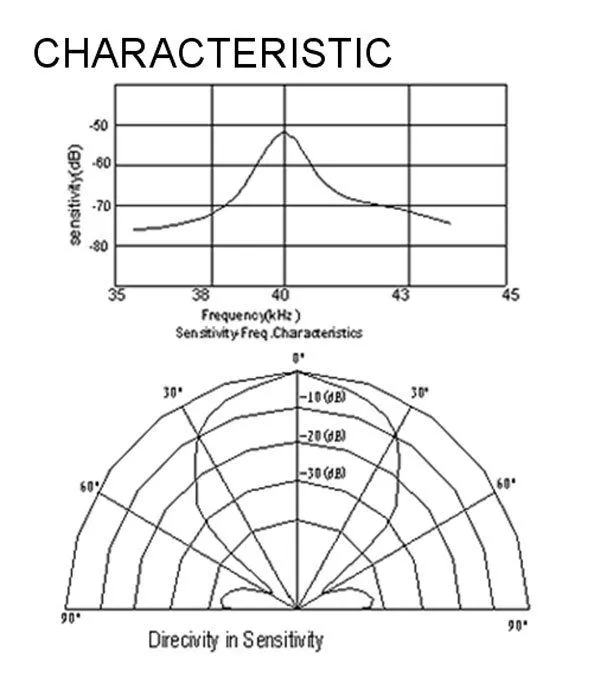

Ultrasonic Transducer SensorProduct Specification

No.	Item	Unit	Specification
No.	Item	Unit		Condition
1	Construction		Openstructure type
2	Using Method		Transmitter
3	Fo CenterFrequency	KHz	40±1
4	FreeCapacitance	PF	2200±20%	at1KHz
5	Min.SoundPressure level	dB	≥100	10Vrms/10cm
6	Material		aluminum
7	Operatingtemp	℃	-30～+85
8	Storagetemp	℃	-40～+90
9	Dimension	mm	φ10*H7	See appearance drawing

Ultrasonic Transducer Sensor Production details

TM-A1240H09T	12*9mm	Open Type	40±1.0KHz	80°±15° (-6dB)	Transmitter
TM-AT1640H10R	16 * 10mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Receiver
TM-A1640H10T	16 * 10mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Transmitter
TM-P1640H12T	16*40mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Transmitter
TM-P1640H10TR	16 * 10mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Transmitter&Receiver
TM-HC-SR04	452015mm	Open Type	40±1.0KHz	≤30°	Transmitter&Receiver
TM-A1640H12TR	16 * 12mm	Open Type	40±1.0KHz	70°±15° (-6dB)	Transmitter&Receiver
TM-A1040H07T	10*7mm	Open Type	40±1.0KHz	70°±15° (-6dB)	Transmitter
TM-A1640H10TR	16*10mm	Open Type	40±1.0KHz	60°±15° (-6dB)	Transmitter&Receiver
TM-A1623H12T	16*12mm	Open Type	23±1.0KHz	80°±15° (-6dB)	Transmitter
TM-A1040H08TR	10 * 8MM	Enclosed	40±1.0KHz	70°±15° (-6dB)	Dual use
TM-A1240H08TR	12 * 8mm	Enclosed	40±1.0KHz	X:110°±15 Y:70° ±10	Dual use
TM-A1440H09TR-W	14 * 9MM	Enclosed	40±1.5KHz	X:110°±15° Y:60°±15°	Dual use
TM-PT1240H09R	12 * 9mm	Open Type	40.0±1.0KHz	70°±15° (-6dB)	Receiver
TM-A1640H10TR	16 * 10MM	Enclosed	40±1.0KHz	70°±15°	Dual use
TM-A1640H12TR	16 * 12MM	Enclosed	40±1.0KHz	X:80°±15° Y:80° ±15°	Dual use
TM-P20165H16TR--W	20 * 16MM	Enclosed	165±5KHz	14°±2°(-6dB)	Dual use
TM-A211MH11TR	21 * 11MM	Enclosed	970±30 KHz	8°±2°	Dual use

Ultrasonic TransducerSensor Workshop:

Our Services

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional and fluent English.

3. Customized design is available.

Technical support

1.We have professional technical support team to support our customers

2.If you have any question for the technology of our products,please Email to us and we will reply to you immediately

FAQ

1. Q: When can we get the reply?

Any inquiries will be replied within 24 hours.

2. Q: Can i have samples?

A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.

3. Q: What about minimum order quantity?

A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.

4. Q: What about delivery time?

A: We will send sample to you within 3 days.

Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.

5. Q: What about terms of payment?

A: Payment terms: T/T, west Union, Paypal and L/C etc.

6. Q: How you will send the goods to us?

A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.

7. Q: Are you trading company or manufacturer ?

A: We are in China buzzer manufactory

8. Q: Do you support OEM and ODM services?

A: Yes, surely support. we can customize products according to the drawing.

9. Q: Can you provide driven circuit?

A: Yes, of course sure.

10. Q: Can you solve technical problems for us?

A: Yes, Our Technical team will try our best to support you.
