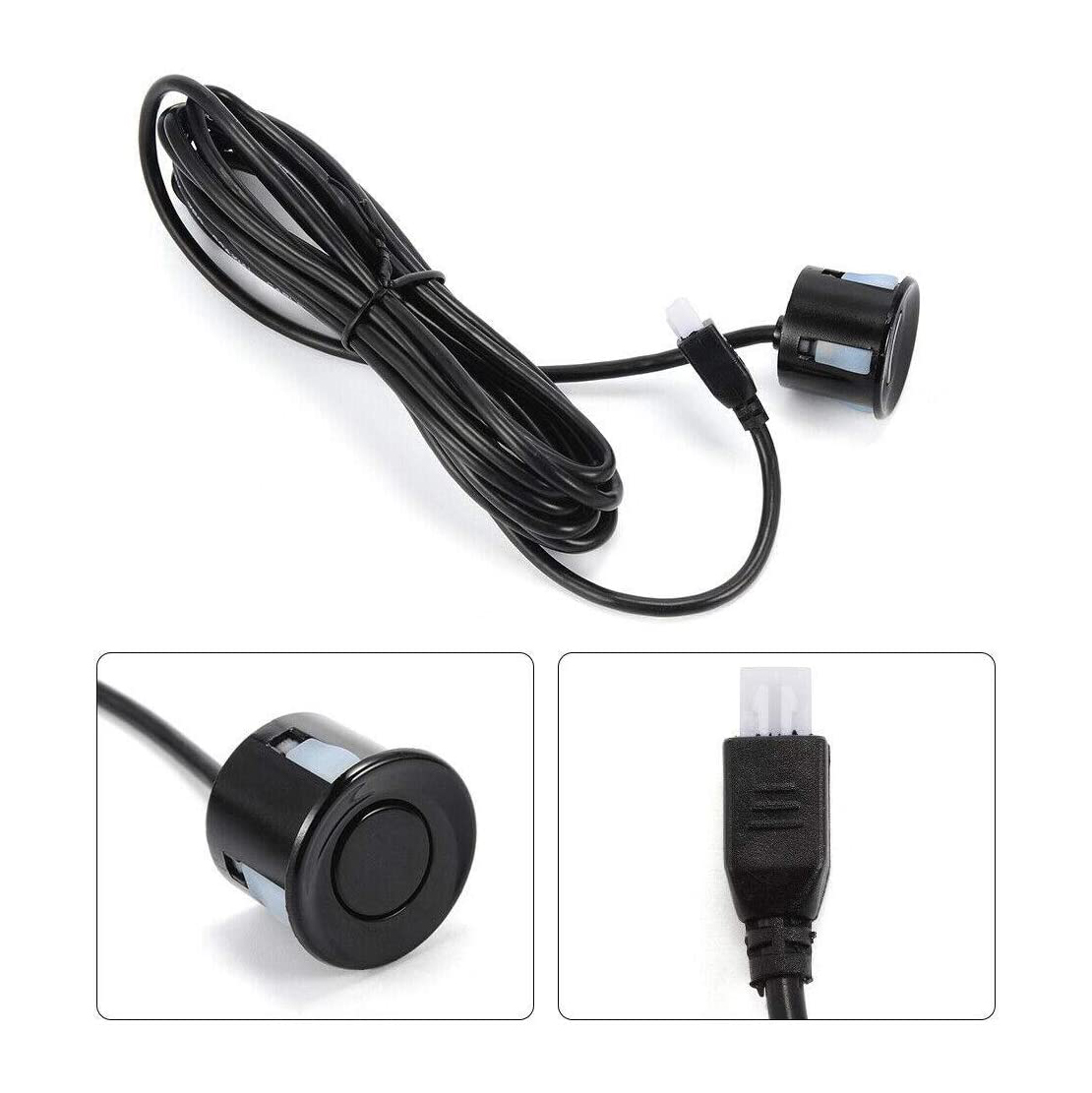

Measuring Transducer Sensor Ultrasonic Distance Sensor Module DC 5V
Waterproof with 2.5M Cable for Arduino
Features of Ultrasonic Level Sensor:
1.Small size, easy to use
2.Low voltage, low power consumption
3.High accuracy
4.Strong anti-jamming
5.Integrated with wire enclosed waterproof probe, suitable for wet,
harsh measurement occasions
The basic working principle:
(1)Using IOTRIGTrigger ranging, to at least 10us high-level signal;
(2)The module automatically sends8A 40khz square wave,
automatically detect whether there is signal return;
(3) There is a signal return via IOECHOOutput oneAHigh, high
duration is the time from the launch of the ultrasound to the
return.Test distance = (high time * sound speed (340M / S)) / 2;
The use of this module is simple, a control mouth made a 10US above
the high level, you can wait for the reception of high-level
output. An output can be opened timer time, when the mouth becomes
low when you can read The value of the timer, this time for the
distance of time, can calculate the distance. Such a continuous
cycle measurement, which can be measured to achieve the value of
your move.
Specificationof Distance Measuring Transducer
| Product name | ultrasonic distance sensor |
| Working voltage | DC 5V |
| Working current | ≤8mA (MAX 50mA) |
| Working temperature | -15℃~60℃ |
| Working humidity | 0-80%RH |
| Blind zone distance | 0-28cm |
| Detection range | 28-450cm |
| Output signal | UART (or PWM / TTL) |
| Accuracy | ±(1+S*0.3%)cm |
| Application | Ultrasonic distance measurement, Trash can, parking |
Applicationof Distance Measuring Sensor:
1, the horizontal range;
2, obstacle avoidance, automatic control;
3, Objects close, there is perceived
4, traffic control;
5, security, industrial control;
6, Artificial intelligence, teaching and research
