40khz 25khz Ultrasonic Piezoelectric Transducer Remote Control
System
Open Type Ultrasonic Sensor
Open-type sensors are classified into 3 types: transmitter,
reciever. It features wide measuring range and strong
anti-interference ability. Open type sensors are mainly used in car
alarm devices, distance measuring device and remote control system.
DESCRIPTION: Ultrasonic Sensor
MODEL: TM-2425H12T/R
FEATURES
1.Dual Use:Transmitter and Receiver
2.Rugged sealed constraction.
3.Cylindrical design allows for installation
in various applications.
4. Short-range measurement capabilities.
APPLICATIONS
1.Level measurement
2.Automation control
3.Proximity
4.bstacle avoidance
5.Robotics
6.Car alarm devices
7.distance measuring device
8.remote control system.
Production details:
No.
Item
Unit
Specification
1
Fo
Center Frequency
KHz
25±1
2
Free Capacitance
pF
2500±25%
3
Min. Sound Pressure level
dB
≥110
4
Sensitivity
dB
≥-70dB
5
Meterial
Aluminum
6
Operating temp
℃
-40℃～+85℃
7
Storage temp
℃
-40℃～+85℃
8

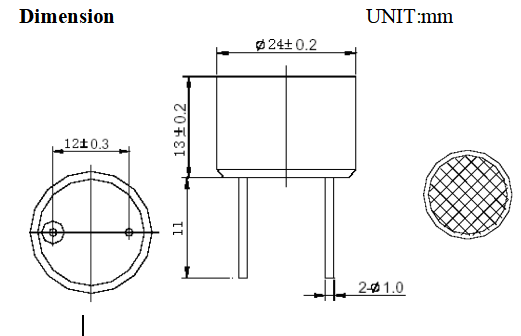

Dimension
mm
24*13
9
Weight
g
1.0
•All specification taken typical at 25C
Closer frequency tolerance,short ringing and wider bandwidth models
can be supplied upon request.
Test circuit:
Please connect us for get more details:
Email:sales88@taimihk.com
WhatsApp/mobile:+86 13538467125
ENVIRONMENTTEST
NO.
ITEM
TEST CONDITION AND REQUIREMENT
1
High Temperature
Test (Storage)
After being placed in a chamber with 70ï2ºC for 96 hours and then
being placed in normal condition for 2 hours.
Allowable variation of SPL after test: ï10dB.
2
Low Temperature
Test (Storage)
After being Placed in a chamber with -20ï2ºC for 96 hours and then
being placed in normal condition for 2 hours.
Allowable variation of SPL after test: ï10dB.
3
Humidity Test
After being Placed in a chamber with 90-95% R.H. at 40ï2ºC for 96
hours and then being placed in normal condition for 2 hours.
Allowable variation of SPL after test: ï10dB.
4
Temperature Cycle
Test
The part shall be subjected to 5 cycles. One cycle shall be consist
of:
Allowable variation of SPL after test: ï10dB.
TEST CONDITION.
Standard Test Condition : a) Temperature : +5 ~ +35℃ b) Humidity :
45-85% c) Pressure : 860-1060mbar
: a) : +5 ~ +35℃ b) : 45-85% c) : 860-1060mbar
Judgment Test Condition : a) Temperature : +25 ± 2℃ b) Humidity :
60-70% c) Pressure : 860-1060mbar
a) : +25 ± 2℃ b) : 60-70% c) : 860-1060mbar
Ultrasonic TransducerSensor testing:
