110db Piezo Electronic Buzzer Security Motorcycle Battery Car Alarm Whistle 60VDC

Ask Lasest Price
Brand Name :	TAIMI
Model Number :	TM-C4218-60LB-WJ320 Motorcycle battery car horn
Certification :	ISO9001、ISO14001、IATF16949
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	1000000/month
Delivery Time :	10~15days

Add to Cart

Product Details
Company Profile

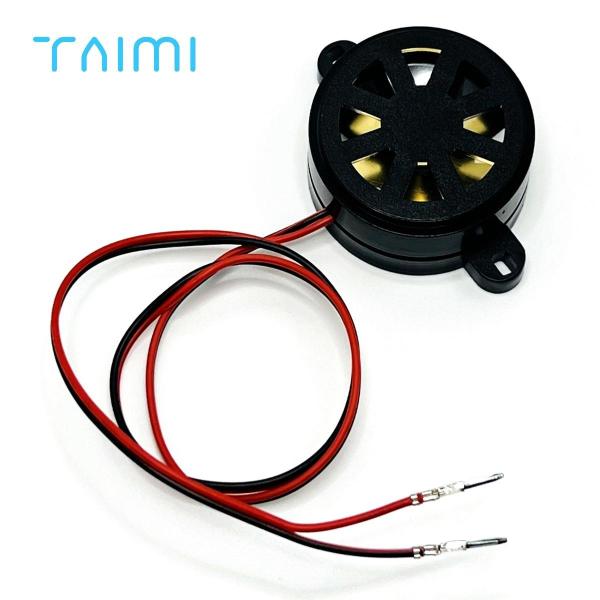

110db Piezo Electronic Buzzer Security Motorcycle Battery Car Alarm Whistle 60VDC

Electric alarm buzzer security alarm whistle Motorcycle electric vehicle horn 4218 60VDC

Part No:TM-4218-60LB-WJ320
1	Rated Voltage (VDC)		60
2	Operating Voltage (VDC)		40～72
3	*Sound Output at 10cm (dB)		≥110 Power on continuously for less than 10 seconds
4	*Current Consumption (mA)		≤100
5	Resonant Frequency (Hz)		Electric vehicle horn sound
6	Operating Temperature (℃)		-20～+50
7	Storage Temperature (℃)		-30～+60
8	Housing Material		Black ABS/PPO
*Applying rated voltage

Soldering process		Soldering Parameter
		Temp.( ℃)	Time(Sec.)	Times
Reflow soldering		245±15	180℃预热 40~70秒 245℃ 3秒 above 180℃ time 40~70	3
Wave soldering		255±5	4~6	2~3
Manual soldering		350±10	2~5	2~3
★接插件
Remark:★ TAIMI Instance Soldering Process

DIMENSIONS (UNIT: mm) Tolerance: ±0.5mm Except Specified

Electronic Alarm Buzzer Details:

The structure of product is compact that provide excellent reliability and practicality
This item is a piezo electronic alarm buzzer, well made of premium material,this item is durable and practical use, inside is a piezo plus the driver circuitry
This buzzer features low voltage,low power consumption and high voice pressure,ideal product for industrial use
This module is ideally suited to adding sound to your project,long service life,small size satisfies your need

FAQ

1. Q: When can we get the reply?

Any inquiries will be replied within 24 hours.

2. Q: Can i have samples?

A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.

3. Q: What about minimum order quantity?

A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.

4. Q: What about delivery time?

A: We will send sample to you within 3 days.

Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.

5. Q: What about terms of payment?

A: Payment terms: T/T, west Union, Paypal and L/C etc.

6. Q: How you will send the goods to us?

A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.

7. Q: Are you trading company or manufacturer ?

A: We are in China buzzer manufactory

8. Q: Do you support OEM and ODM services?

A: Yes, surely support. we can customize products according to the drawing.

9. Q: Can you provide driven circuit?

A: Yes, of course sure.

10. Q: Can you solve technical problems for us?

A: Yes, Our Technical team will try our best to support you.
