Passive Electronic Alarm Buzzer High Temperature Resistant Coil Square SMD Piezo Buzzer

Ask Lasest Price
Brand Name :	TAIMI
Model Number :	TM-SMD121203 PIEZO SMD BUZZER
Certification :	ISO9001、ISO14001、IATF16949,ROHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	1000000/month
Delivery Time :	10~15days

Add to Cart

Product Details
Company Profile

Passive Electronic Alarm Buzzer High Temperature Resistant Coil Square SMD Piezo Buzzer

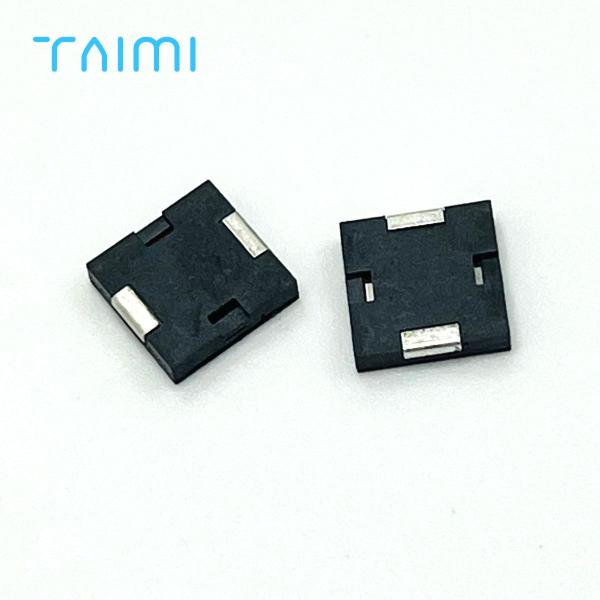

SMD Patch Passive 12*12*3mm Device alarm buzzer high temperature resistant coil square piezo smd buzzer

1. SMD PIEZO BUZZER Specification

1	Rated Voltage (Vp-p)	3
2	Resonance Frequency (KHz)	4.0±0.5
3	Max Input Voltage (Vp-p)	25
4	Capacitance at 120Hz (pF)	16000±30%
5	*Sound Output at 10cm (dB)	≥75
6	Operating Temperature (℃)	-40~+85
7	Storage Temperature (℃)	-40~+85
8	*Rated Current (mA)	≤3
9	Weight (g)	0.3
10	Housing Material	LCP
11	MSL(Moisture Sensitivity Level)	5a(≤30℃/60%RH 24H Floor life)
12	RoHS	Yes

2. SMD PIEZO TOP SOUNDS BUZZER Dimensions

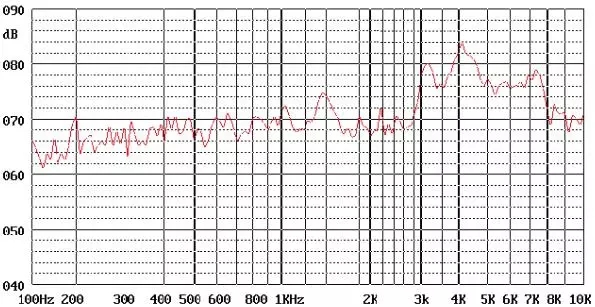

3. SMD PIEZO TOP SOUNDS BUZZER Frequency Curve:

Application:

Buzzer is generally used in intelligent wearable equipment, anti-theft system, medical equipment, industrial production, etc.

F&A:

1. Q: When can we get the reply?

Any inquiries will be replied within 24 hours.

2. Q: Can i have samples?

A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.

3. Q: What about minimum order quantity?

A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.

4. Q: What about delivery time?

A: We will send sample to you within 3 days.

Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.

5. Q: What about terms of payment?

A: Payment terms: T/T, west Union, Paypal and L/C etc.

6. Q: How you will send the goods to us?

A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.

7. Q: Are you trading company or manufacturer ?

A: We are in China buzzer manufactory

8. Q: Do you support OEM and ODM services?

A: Yes, surely support. we can customize products according to the drawing.

9. Q: Can you provide driven circuit?

A: Yes, of course sure.

10. Q: Can you solve technical problems for us?

A: Yes, Our Technical team will try our best to support you.
